BEIDE 1MT0013 Series Three-phase Asynchronous Motor

BEIDE 1MT0013 Series Three-phase Asynchronous Motor

    Brand: Beide
    Transportation: Ocean
    Place of Origin: China
    Port: Shanghai

Product Description

Beide series high efficiency dust explosion-proof three-phase asynchronous motor is totally enclosed, self-fan cooled high efficiency motor. The products meet the requirements of the GB18613-2020 efficiency of energy efficiency grade 3. The series products introduce Siemens design technology with excellent performance, safe and reliable to use, low vibration, low noise,and meet environmental protection requirements . Its production equipments adopt advanced CNC machine tool equipment, citing Siemens advanced insulation structure design and manufacturing process, use high quality cold rolled silicon steel sheet and high quality bearing with strict quality control .


Beide dust explosion-proof motor can be used for food or forage machine, wood machine, flour machine or storage, as well metal,chemicals, synthetic resin, agricultural products and all kinds of combustible dust places such as fiber, fuel and so on . Detailed types of dust refer to "dust characteristics example," but this series motors are not suitable for gas or underground coal mine with combustible dust and coal mine ground device with electrical equipment, also can’t be used in place with explosive dust and spontaneous combustion substances (e .g . phosphorus powder) but can burn without oxygen from the atmosphere .


Beide dust explosion-proof motor's performance fulfill GB 12476 . 1- 2013 "Combustible dust environment for electrical equipment -part 1: General requirements" and GB 12476 .5-2013 "Combustible dust environment for electrical equipment - Part 5: Housing protection type" tD "", suitable for explosive dust environment Zone 21 or zone 22.



1MT0013 Dust explosion-proof motor

1
Rated output:0.55 ~ 315 kW
Frame size :80 ~ 355
Voltage and Frequency :Support multiple voltage
and frequency
Cooling method:IC411
Frame-proof marking:Ex tD A21 IP65 T130℃ Protect degree:IP65
Insulation class : F
Re-greasing device :FS280 and above motor as standard
Ambient temperature :- 15 ℃ ~ +40 ℃
Site altitude above see level:Not exceed 1000m


Company Profile
1MT0013 Dust explosion-proof motor
Siemens Standard Motors Ltd. (SSML)
Siemens Standard Motors Ltd. (SSML) is a Siemens-owned company in China. SSML is located in Yizheng City, Jiangsu Province. The company focuses on developing and producing small and medium low-voltage motors. Currently, SSML mainly produce Siemens brand low voltage AC motors according to IEC standards, and Beide brand low voltage motors designed according to China local standards.

As one of Siemens main low-voltage motor production facilities worldwide, SSML uses the knowledge and experience of more than 100 years in motor design and manufacturing, owns the advanced manufacture equipment and process, adopts the SIEMENS modern management model , and implements comprehensive quality control according to ISO9001 2015. SSML will continuously serve customers with high quality products and good service.


1MT0013 Dust explosion-proof motor

Explosion-proof Profile

Classification of zones

Areas subject to explosion hazard are divided into zones . Zoning is based on the presence time of explosive substances and probability of explosion . Information and specifications for classification of the zones are laid down in the following standards:
• GB 3836 . 14, IEC/EN 60079- 10- 1 for gas atmospheres
• GB 12476 .3, IEC/EN 60079- 10-2 for dust atmospheres
Furthermore, a distinction is made between various explosion groups as well as temperature classes and these are included in the hazard assessment .

1MT0013 Dust explosion-proof motor


Depending on the particular zone and therefore the associated hazard, operating equipment must comply with defined minimum requirements regarding the type of protection . The different types of protection require corresponding measures to prevent ignition that should be implemented at the motor in order to prevent a surrounding explosive atmosphere from being ignited .

Zone

Zone denition acc. to

GB3836.14 & IEC/EN 60079-10-1 for gas atmospheres

GB 12476.3 & IEC/EN 60079-10-2 for dust atmospheres

Assigned

types of

protection

Category according to

2014/34/EU

Equipment protection level acc. to GB3836.1 & IEC/EN 60079-0

Gas

1) 2)

Dust

1) 2)

0

An area in which there is an explosive gas atmosphere constantly, over a long period or frequently.

Low-voltage motors not

permitted

1

Ga

1

An area in which it is expected that an explosive gas atmosphere will occur occasionally during normal operation .

Ex e(GB) or Ex eb(IEC), Ex de, Ex d(GB) or Ex db(IEC)

2

Gb

2

An area in which it is expected that an explosive gas atmosphere will occur only rarely and then only briey during normal operation .

Ex nA(GB) Ex ec(IEC)

3

Gc

20

An area in which there is an explosive gas atmosphere comprising a dust-air mixture constantly, over a long period or frequently.

Low-voltage motors not

permitted

1

Da

21

An area in which it is expected that an explosive gas atmosphere comprising a dust-air mixture will occur occasionally during normal operation .

Ex tb

2

Db

22

An area in which it is expected that an explosive gas atmosphere in the form of a cloud of ammable dust in air will occur only rarely and then only briey during normal operation .

Ex tc 3)

3

Dc

1) Motors of
- Zone 1 can also be used in Zone 2.
- Zone 21 can also be used in Zone 22.
2) Motors which are certified for gas or dust protection must not be used in hybrid mixtures! Hybrid mixtures: when explosive gas and dust atmospheres occur simultaneously.
3) Ex tc motors are not approved for operation in environments containing conductive dust .


Application

The explosion-proof motors are often used in the following industries to prevent explosion hazards that result in serious injury to persons and severe damage to property.
• Chemical and petrochemical industry
• Production of mineral oil and gas
• Gas works
• Gas supply companies
• Petrol stations
• Coking plants
• Mills (e .g . corn, solids)
• Sewage treatment plants
• Wood processing (e .g . sawdust, tree resin)
• Other industries subject to explosion hazards

Noise levels

The noise levels are measured in accordance with DIN EN ISO 1680
in a anechoic room . It is specified as the A-valued measuring-surface sound pressure level Lpfa in dB (A) . This is the spatial mean value of the sound pressure levels measured on the measuring surface . The measuring surface is a cube 1 m away from the motor surface . The sound power level is also specified as LWA in dB (A) . Please find the noise value in technical data table, the specified values are only valid for totally enclosed fan cooling (cooling method: IC411) motor with no load at 50 Hz with no load, and the tolerance is +3 dB . While motor operating 60 Hz with no load, the values are approximately +4 dB (A) higher.

Vibration

The rotors are dynamically balanced to severity grade A using a half key. Table below contains the effective vibration values for unloaded motors. Vibration grade B can be provided as option.

Vibration Grade

Frame size (mm)

56 ≤ FS ≤ 132

H>132

Mounting

Vibration displacement/um

Vibration velocity/(mm/s)

Vibration displacement/um

Vibration velocity/(mm/s)

A

Free suspension

45

2.8

45

2.8

Rigid mounting

-

-

2.3

2.81)

B

Free suspension

18

1.1

29

1.8

Rigid mounting

-

-

-

1.5

1.81)


Note:
1) The level are vibration velocity limit when the twice line frequency vibration level is dominant defined by GB/T 10068-2020, for 2p motors that frame size bigger than 132mm .

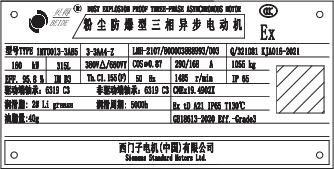

Nameplate

1MT0013 Dust explosion-proof motor



1MT0013 Dust explosion-proof motor



Construction and mounting type

1MT0013 Dust explosion-proof motor

Notes:
1) At outdoor application, the using of protective cover (option code H00) is recommended;
2) At out door application the protection of shaft again jet-water is recommended .

Bearing Assignment

1MT0013 series motors are supplied with the ball bearing as standard . These bearings are either of the sealed or regreasable type .

For FS80 ~ 160, the floating bearings are assembled; for FS180 ~ 355, floating bearing at DE, and fixed bearing at NDE assembled .

The standard bearing can endure a maximum cantilever force, the increased cantilever bearing design (Option code: L22) should be considered .

As standard, FS80 ~ 250 motors are not with regreasing device, but re-greasing device (Option code: L23) can be configured for FS160~250 . FS280~355 motors with regreasable bearing and regreasing device is configured as standard .

Frame

Pole

Standard design

Increased cantilever-bearing (Option code:L22)

DE bearing

NDE bearing (Horizonal mounting)

NDE bearing

DE bearing

NDE bearing(Horizonal mounting)

NDE bearing

(Vertical mounting)

(Vertical mounting)

80

2,4,6

6204 2RZ C3

6204 2RZ C3

6204 2RZ C3

90

2,4,6

6205 2RZ C3

6205 2RZ C3

6205 2RZ C3

100

2,4,6

6206 2RZ C3

6206 2RZ C3

6206 2RZ C3

6306 2RZ C3

6206 2RZ C3

6206 2RZ C3

112

2,4,6

6206 2RZ C3

6206 2RZ C3

6206 2RZ C3

6306 2RZ C3

6206 2RZ C3

6206 2RZ C3

132

2,4,6,8

6208 2RZ C3

6208 2RZ C3

6208 2RZ C3

6308 2RZ C3

6208 2RZ C3

6208 2RZ C3

160

2,4,6,8

6209 2RZ C3

6209 2RZ C3

6209 2RZ C3

6309 2RZ C3

6209 2RZ C3

6209 2RZ C3

180

2,4,6,8

6310 2RZ C3

6310 2RZ C3

6310 2RZ C3

NU310

6310 2RZ C3

6310 2RZ C3

200

2,4,6,8

6312 2RZ C3

6312 2RZ C3

6312 2RZ C3

NU312

6312 2RZ C3

6312 2RZ C3

225

2,4,6,8

6313 2RZ C3

6313 2RZ C3

6313 2RZ C3

NU313

6313 2RZ C3

6313 2RZ C3

250

2,4,6,8

6315 C3

6315 C3

6315 C3

NU315

6315 C3

6315 C3

280

2,4,6,8

6317 C3

6317 C3

6317 C3

NU317

6317 C3

6317 C3

315

2

6316 C3

6316 C3

6316 C3

NU316

6316 C3

6316 C3

4,6,8

6319 C3

6319 C3

6319 C3

NU319

6319 C3

6319 C3

355

2

6317 C3

6317 C3

7317

NU317

6317 C3

O .R .

4,6,8

6322 C3

6322 C3

7322

NU322

6322 C3

O .R .


Grease life and re-greasing interval

For permanent lubrication, the bearing grease lifetime is matched to the bearing lifetime . This can, however, only be achieved if the motor is operated in accordance with the catalog specifications .

For motors which can be regreased at defined regreasing intervals, the bearing lifetime can be extended and/or unfavorable factors such as temperature, mounting conditions, speed, bearing size and mechanical load can be compensated .


Grease life (Horizontal installation)

座号 Frame size

PolesPoles

Grease lifetime up to CT 40 ºC

Grease for permanent lubrication bearing

80-250

2,4,6,8

20000 or 40000 h

Greasefor regreasable bearing

180 ~ 250

2

4000 h

468

8000 h

280 ~ 315

2

3000 h

468

5000 h

355

2

3000 h

468

4000 h

Note:

1)If the coolant temperature is increased by 10 K, the grease lifetime and regreasing interval are halved .
2) 40000 h apply to horizontally installed motors with coupling output without additional axial loads .

When the motor runs outside of normal conditions, the bearing life will be reduced, such as the following conditions .
■ When motor runs beyond the rated speed, the increase of motor vibration will result in the extra radial and axial force on bearing . This will reduce the life of bearing;
■ When the motor vibration increase due to the environment or
other equipment, the bearing also will endure more radial and axial force . This also will reduce the life of bearing;
■ If the coolant temperature is increased by 10 ºC, the grease lifetime and regreasing interval is halved .

Connection boxes technical data

Frame
Size

No. of main terminal

Main terminal thread

Max. connectable cross-section

Cable diameter (mm) max. ~ min.

Cable entry size

Max. auxiliary terminal

80

6

M4

1.5

13~18

M25x1 .5+M16x1 .5

12

90

100

M4

4

18~25

M32x1 .5+M32x1 .5

12

112

132

6

160

M5

16

22~32

M40x1 .5+M40x1 .5

14

180

200

M6

25

32~38

M50x1 .5+M50x1 .5

14

225

M8

35

250

M10

120

37~44

M63x1 .5+M63x1 .5

14

280

315

M12

150

37~44

M64x2 + M64x2

18

355

M16

240

42~54

M72x2 + M72x2

18

Cable entry size

Allowed outer cable diameter range (mm)

Allowed core number range of cable

Nominal section area of connection (conductor)(mm2)

M16 x 1.5

8-11

2-7

1 mm2

M20 x 1.5

11- 14 .3

8-10

1 mm2

M27 x 2

13-20 .2

12-27

1 mm2

Note:
1. Power cables are recommended to use YJV (GB/17206) crosslinked polyethylene insulation and PVC sheath 3+1 copper core cable .
2. The control cable of weak current signal is recommended to use KVV (GB/T9330) polyvinyl chloride insulated sheath copper core section 1 mm2 multi-core control cable .
3. The heating line is a strong signal control, please use the KVV copper core section 2 x 1mm 2 control cable to enter the line alone .
4. If the cable diameter is not in the range of explosion protection, the electric motor will lose the explosion-proof property.
5. If you need to use an armored gland, please make a special inquiry.


Electrical design

Rated Output
Beide motors rated output powers means that the motor runs under continuous duty S1 (IEC 60034 - 1) operation when operated at ambient temperature from - 15 ºC to 40 ºC and at altitudes of up to 1000 m over sea .
Voltage and Frequency
IEC 60034-1 differentiates between Category A (combination of voltage deviation ±5 % and frequency deviation ±2 %) and Category B (combination of voltage deviation %) and Category B (combination of voltage deviation ±10 % and frequency deviation +3 % / -5 %) for voltage and frequency fluctuations. The motors can supply their rated torque in both Category A and B. In Category A, the temperature rise is approximately 10 K higher than during normal operation.

Voltage deviation

±5 %

± 10 %

Frequency deviation

±2 %

+3 % / -5 %

According to the standard, longer operation is not recommended for Category B .

Tolerance for electrical data
■ Efficiency ηat
Prated ≤ 150 kW: - 0.15 x (1 – η)
Prated > 150 kW: - 0.10 x (1 – η)

With η being a decimal number

Power factor (1 – cos φ) / 6

Minimum absolute value0.02

Maximum absolute value0.07

Slip ±20 % (for motors < 1 kW ±30 % is admissible)

Locked-rotor current +20 %

Locked-rotor torque - 15 % to +25 %

Breakdown torque - 10 %

Moment of inertia ± 10 %
