DOE Code 7 Activated Carbon Filter Cartridges

Active Carbon Filter Cartridge (ACF)

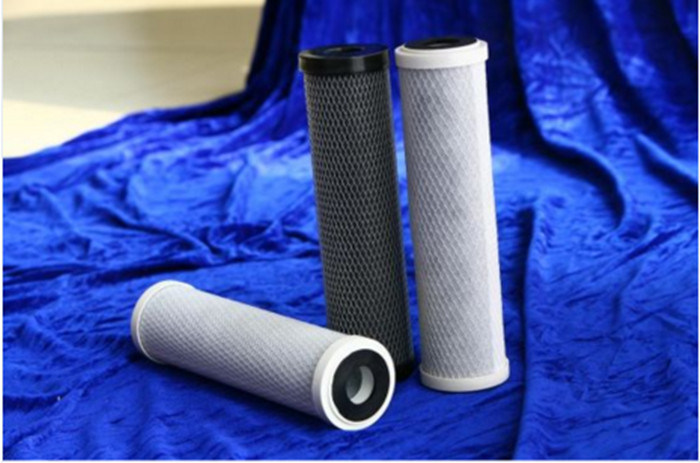

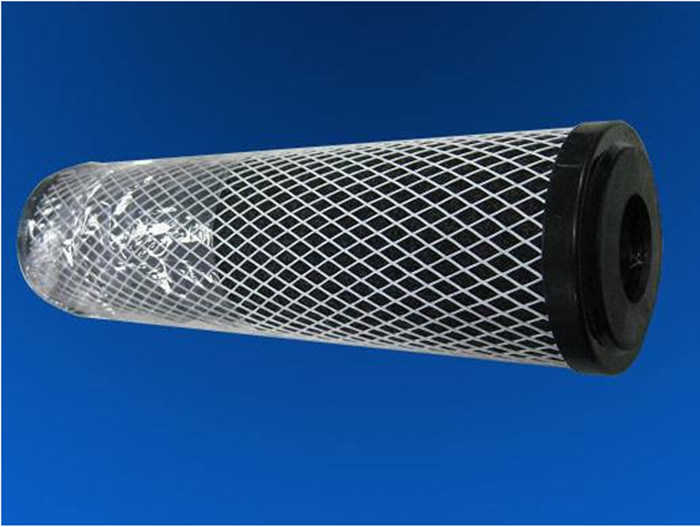

Activated carbon block filter cartridge is made of high quality active carbon particles, which are sintered together with cohesive solvent. High mechanical strength; good integrality; free of surfactants. Usually used for liquid filtration.

Features and Benefits

1. Depth filter

2. Large flow

3. High dirt holding capacity

4. Wide chemical compatibility; suitable for strong alkaline and acid environment

5. Economical and ideal choice

6. 100% PP

7. Excellent ability to remove the odor, color and chlorine

Typical Applications

1. Alcohol clarification

2. Remove the color in the organic solvent

3. Remove the chlorine, excellent absorption to Benzene and heavy metal ions;

Main Technical Data (10")

Micron Rating(µm): 1.0 5.0

Materials of Construction

Filter Media: Activated Carbon Fiber

Support Layer: Polypropylene

Inner Core: Polypropylene

Outer Core: Polypropylene

Cartridge Dimensions

Outer Diameter: 69mm

Inner Diameter: 33mm

Effective Filtration Area: ≥0.50m2

Operation Conditions

Normal Operating Temperature: ≤50ºC

Max. Operating Temperature: 65ºC(△P≤0.10Mpa)

Max. Differential Pressure: Normal Flow direction:4.0 bar at 25ºC

Reverse Flow direction: 2.1 bar at 25ºC

Steam Sterilization for 30 minutes at 121±2ºC

PH Value compatibility: 1-13








ABOUT US:

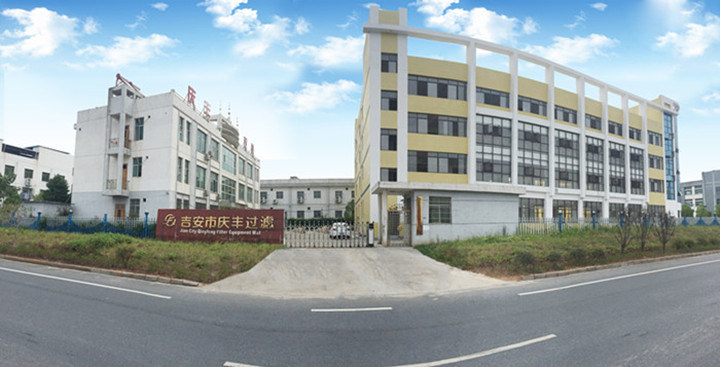

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.

Contact us if you need more details on Activated Carbon Filter Cartridges. We are ready to answer your questions on packaging, logistics, certification or any other aspects about DOE Activated Carbon Filter Cartridges、Pes Cartridge Filter. If these products fail to match your need, please contact us and we would like to provide relevant information.
